Aluminum 7075 Hydraulic Valve Manifold with 350Bar Maximum Pressure and CNC Machining for Precision Control

Name: Aluminum 7075 Hydraulic Valve Manifold with 350Bar Maximum Pressure and CNC Machining for Precision Control
Brand: Dongguan Zhongwei Metal Products Co., Ltd
SKU: OEM-125
Price: 1.00 USD
Availability: InStock

Product Details

Place of Origin: Tangxia, Dongguan, China

Brand Name: Zhong wei

Certification: ISO9001:2015, ISO13485:2016

Model Number: OEM-125

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: negotiable

Packaging Details: Customized according to customers

Delivery Time: 7 work days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 10000Pcs/ Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                            Aluminum 7075 Hydraulic Valve Manifold, Aluminum Hydraulic Motor Control Valve, Aluminum Hydraulic Motor Reversing Valve


Valve Type:	Hydraulic Cartridge Valve	Pressure:	Hydraulic
Maximum Pressure:	350Bar	Quality Assurance:	100% Hydraulic Function Testing
Production Technology:	CNC Machining

Valve Type:	Hydraulic Cartridge Valve
Pressure:	Hydraulic
Maximum Pressure:	350Bar
Quality Assurance:	100% Hydraulic Function Testing
Production Technology:	CNC Machining

Product Description

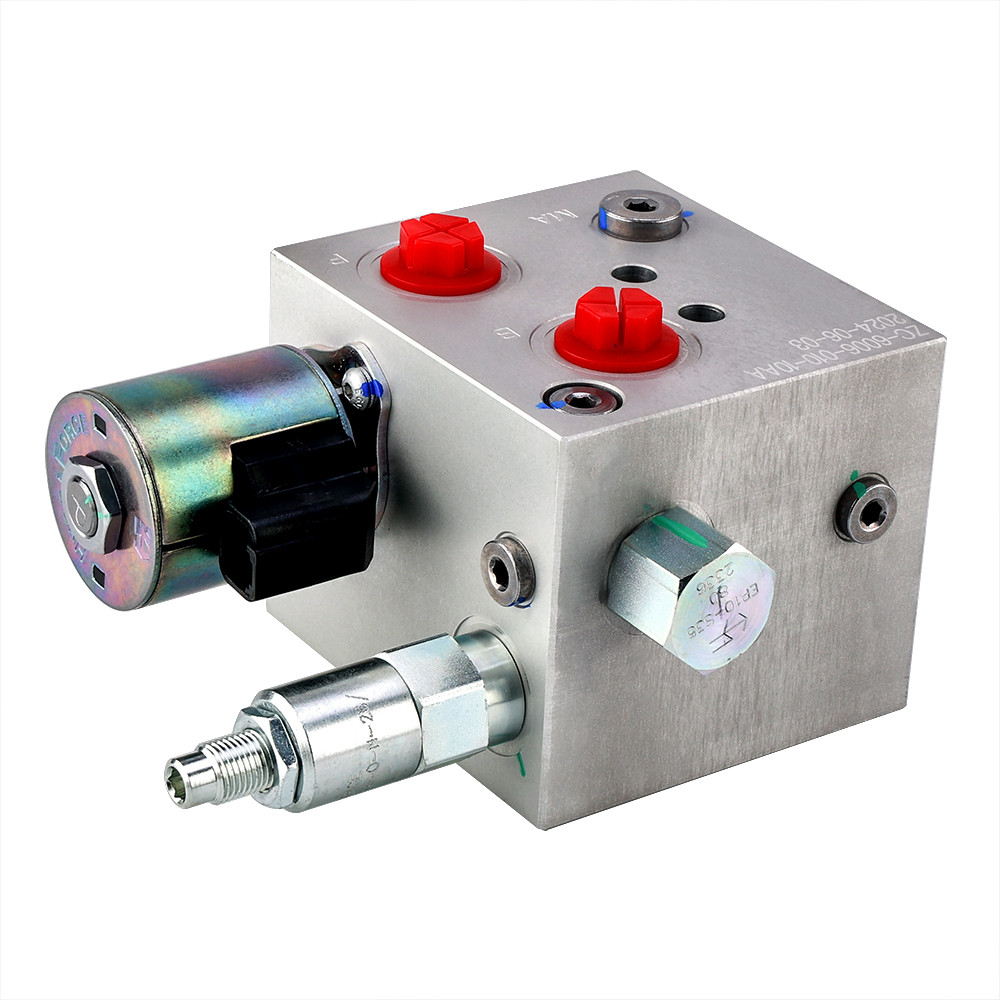

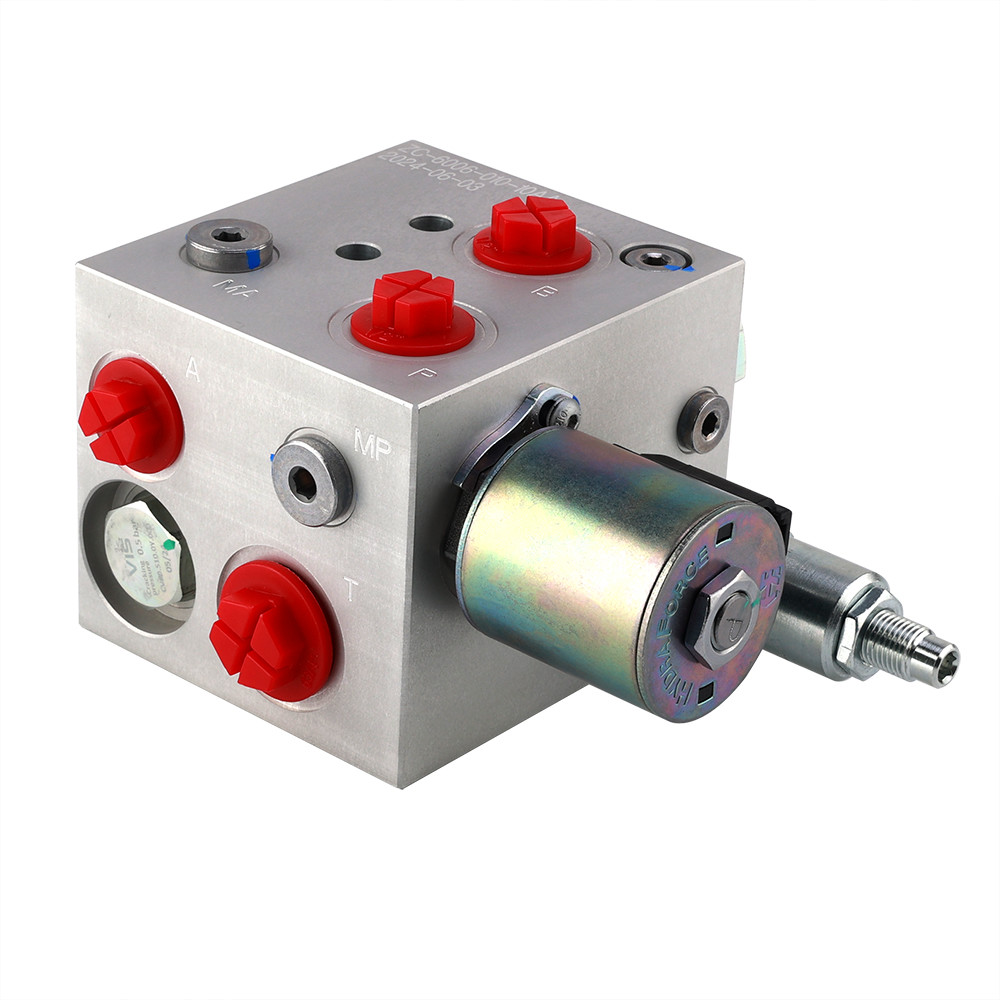

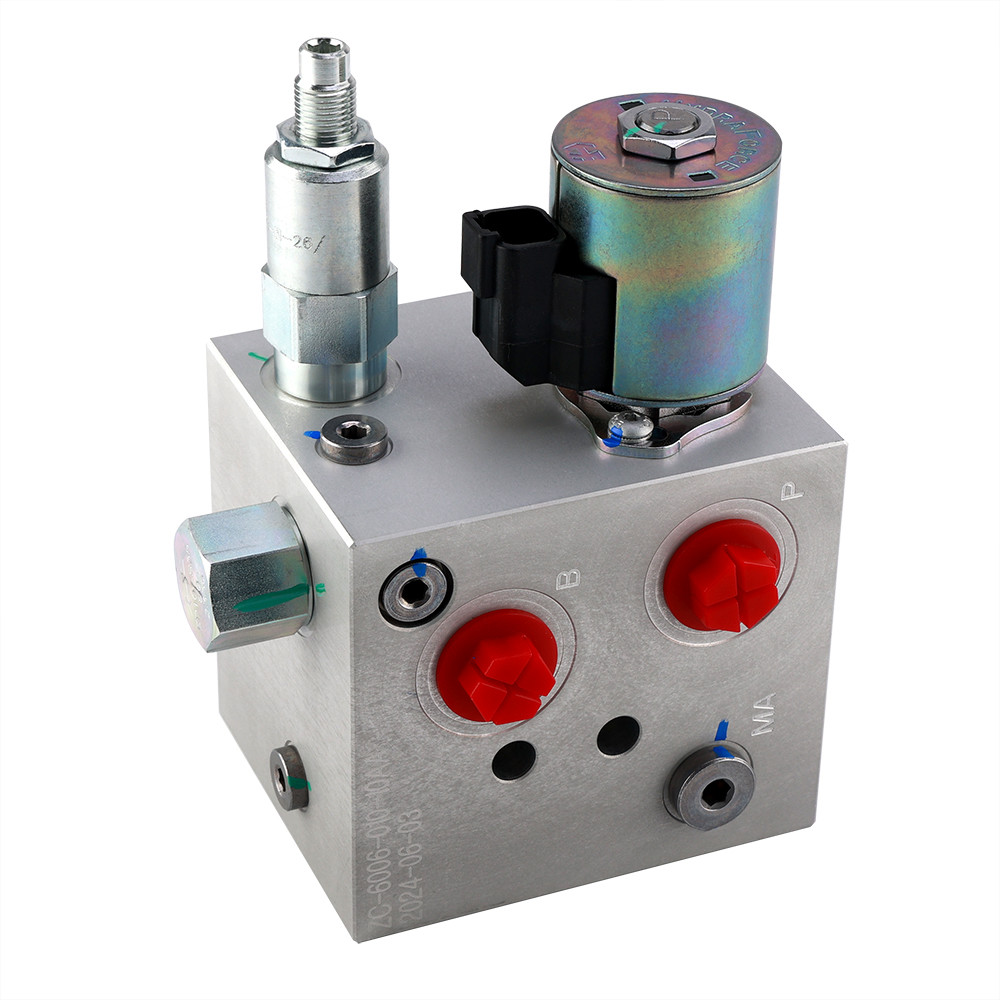

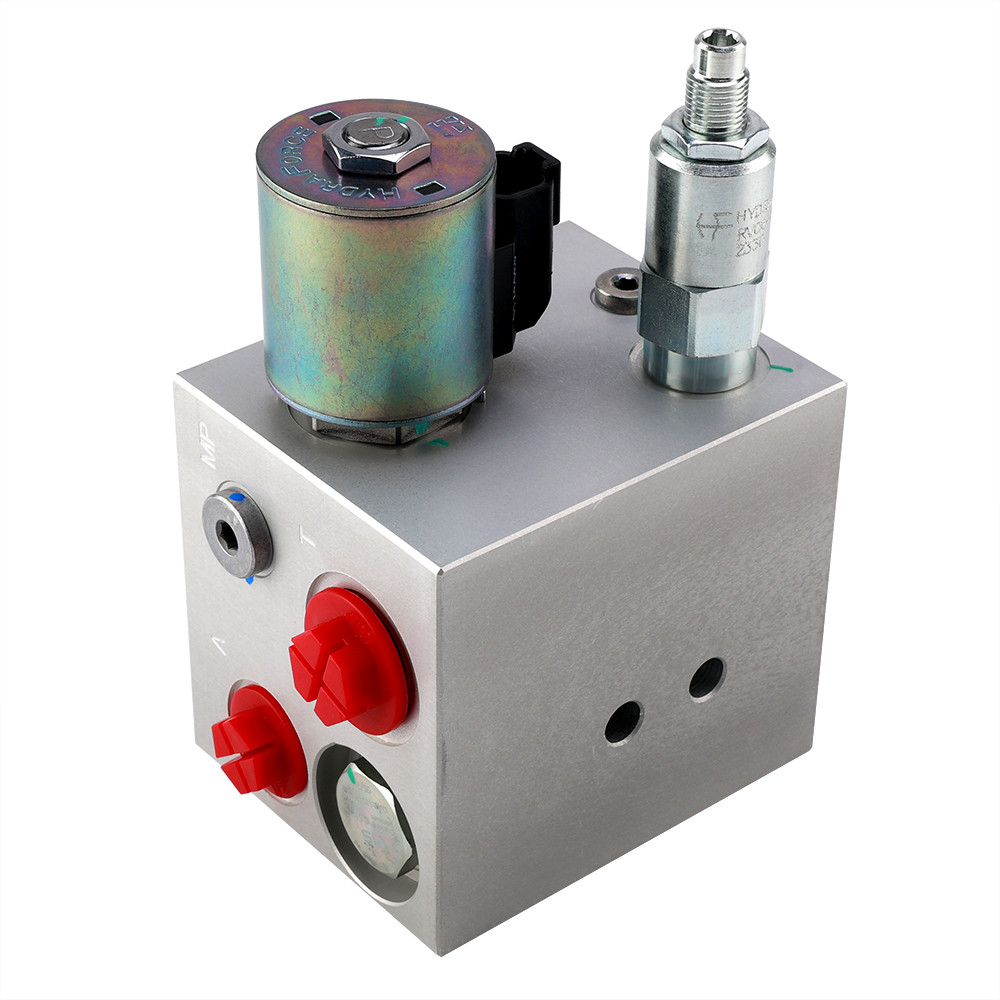

Aluminum 7075 Hydraulic Valve Manifold - Hydraulic Motor Control & Reversing Valve

Hydraulic manifold blocks serve as essential components in hydraulic systems, functioning as centralized control hubs for managing hydraulic fluid circulation. Constructed from durable materials including aluminum, steel, or cast iron, these blocks are engineered to withstand high pressures and demanding environmental conditions.

Key Characteristics of Hydraulic Manifold Blocks

Centralized Operations Hub: Integrates all control valves, streamlining system design and reducing fluid channel complexity
Custom Design Capabilities: Meticulously engineered to meet specific application requirements for optimized system performance
Space-Efficient Design: Consolidates multiple valves into a single unit, saving space and reducing tubing requirements
Reduced Leak Potential: Minimizes potential leak sources through integrated valve configuration, enhancing system integrity
Durable Material Construction: Manufactured from robust materials ensuring longevity and resistance to operational stresses

Core Functions

Fluid Routing: Channels hydraulic fluid to system components with precise flow control
Pressure Management: Incorporates pressure relief valves to protect against excessive pressure and maintain stable operations
Flow Direction Control: Utilizes directional control valves to manage fluid paths and actuator movements
Multi-Function Integration: Accommodates various valve types including check, sequence, and bleed valves in compact layouts
Advanced Circuitry Support: Enables implementation of complex control circuits for refined system operations

Industry Applications

Advanced Manufacturing: Robotics and automated assembly lines requiring precise hydraulic control
Heavy Machinery: Earthmoving equipment including excavators and cranes with complex hydraulic systems
Automotive Systems: Critical applications in braking, clutching, and power steering mechanisms
Aerospace & Military: Reliable hydraulic operation control in aircraft and military vehicles
Maritime Operations: Control systems for ships and offshore platforms ensuring smooth functionality
Energy Sector: Hydraulic fracturing, drilling, and pipeline control systems in oil and gas industries

Hydraulic manifold blocks are fundamental to hydraulic system functionality, offering exceptional durability, efficiency, and adaptability across diverse industrial sectors.

Manufacturing Capabilities & Specifications

Service	CNC Turning, CNC Milling, Laser Cutting, Bending, Spaning, Wire Cutting, Stamping, Electric Discharge Machining (EDM), Injection Molding
Materials	Aluminum: 2000 series, 6000 series, 7075, 5052 etc Stainless Steel: Sus303, SUs304, 316, 316L, 17-4PH etc Steel: 1214L/1215/1045/4140/SCM440/40CrMo etc Brass: 260, C360, H59, H60, H62, H63, H65, H68, H70, Bronze, Copper Titanium: Grade F1-F5 Plastic: Acetal/POM/PA/Nylon/PC/PMMA/PVC/PU/Acrylic/ABS/PTFE/PEEK etc
Surface Treatment	Anodize, Bead blasted, Silk Screen, PVD Plating, Zinc/Nickel/Chrome/Titanium Plating, Brushing, Painting, Powder Coated, Passivation, Electrophoresis, Electro Polishing, Knurl, Laser/Etch/Engrave etc
Tolerance	+/-0.002~+/-0.005mm
Surface Roughness	Min Ra0.1~3.2
Drawing Accepted	STP, STEP, IGS, XT, AutoCAD (DXF, DWG), PDF, or Samples
Lead Time	1-2 weeks for samples, 3-4 weeks for mass production
Quality Assurance	ISO9001:2015, ISO13485:2016, SGS, ROHS, TUV
Payment Terms	Trade Assurance, TT/Paypal/WestUnion

Frequently Asked Questions

Q1: Are you a manufacturer or a trading company of custom CNC machine parts?

A1: Our company is a manufacturer specializing in the production of customized metal parts, including hydraulic manifold valves, CNC parts, machining parts, and engineering plastic parts.

Q2: What is the minimum order quantity for hydraulic manifold valves and CNC parts?

A2: The minimum quantity for hydraulic manifold valves, CNC parts, machining parts, and engineering plastic parts is 1 piece.

Q3: What is the delivery time for hydraulic manifold valves and CNC parts?

A3: Generally, delivery time is 12-15 days, but we can expedite urgent orders.

Q4: How do I order hydraulic manifold valves and CNC parts?

A4: 1. Send us your sample or drawings
2. We will evaluate your requirements
3. Create a sample for your review
4. Sign contract and pay 30-50% deposit
5. Production scheduling
6. Quality inspection and timely delivery
7. Pay balance upon receipt of goods

Q5: How do you ensure product quality?

A5: We conduct 100% quality control before shipment with a defect rate below 0.8%. Our company maintains high-quality standards, excellent service, and modern enterprise management practices.

Q6: What transportation methods do you use?

A6: Generally, we use express transportation, but we can arrange delivery according to customer requirements.
