Hydraulic Manifold Valve Block with 4 Weeks Lead Time Hydraulic Pressure and Milling Process

Name: Hydraulic Manifold Valve Block with 4 Weeks Lead Time Hydraulic Pressure and Milling Process
Brand: Dongguan Zhongwei Metal Products Co., Ltd
SKU: OEM-131
Price: 1.00 USD
Availability: InStock

Product Details

Place of Origin: Tangxia, Dongguan， China

Brand Name: Zhongwei

Certification: ISO9001:2015, ISO13485:2016

Model Number: OEM-131

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: Price Negotiation

Packaging Details: Customized as per requirement

Delivery Time: 6-15 days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 10000Pcs/ Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                    Integrated Hydraulic Manifold Valves, OEM Hydraulic Manifold, Aluminum Hydraulic Reversing Valve


Product Name:	Hydraulic Manifold Valve Block	Valve Type:	Integrated Valve Manifolds
Pressure:	Hydraulic	Production Lead Time:	4 Weeks
Process:	Milling, Clean, Surface Coating	Material:	Aluminum & Steel

Product Name:	Hydraulic Manifold Valve Block
Valve Type:	Integrated Valve Manifolds
Pressure:	Hydraulic
Production Lead Time:	4 Weeks
Process:	Milling, Clean, Surface Coating
Material:	Aluminum & Steel

Product Description

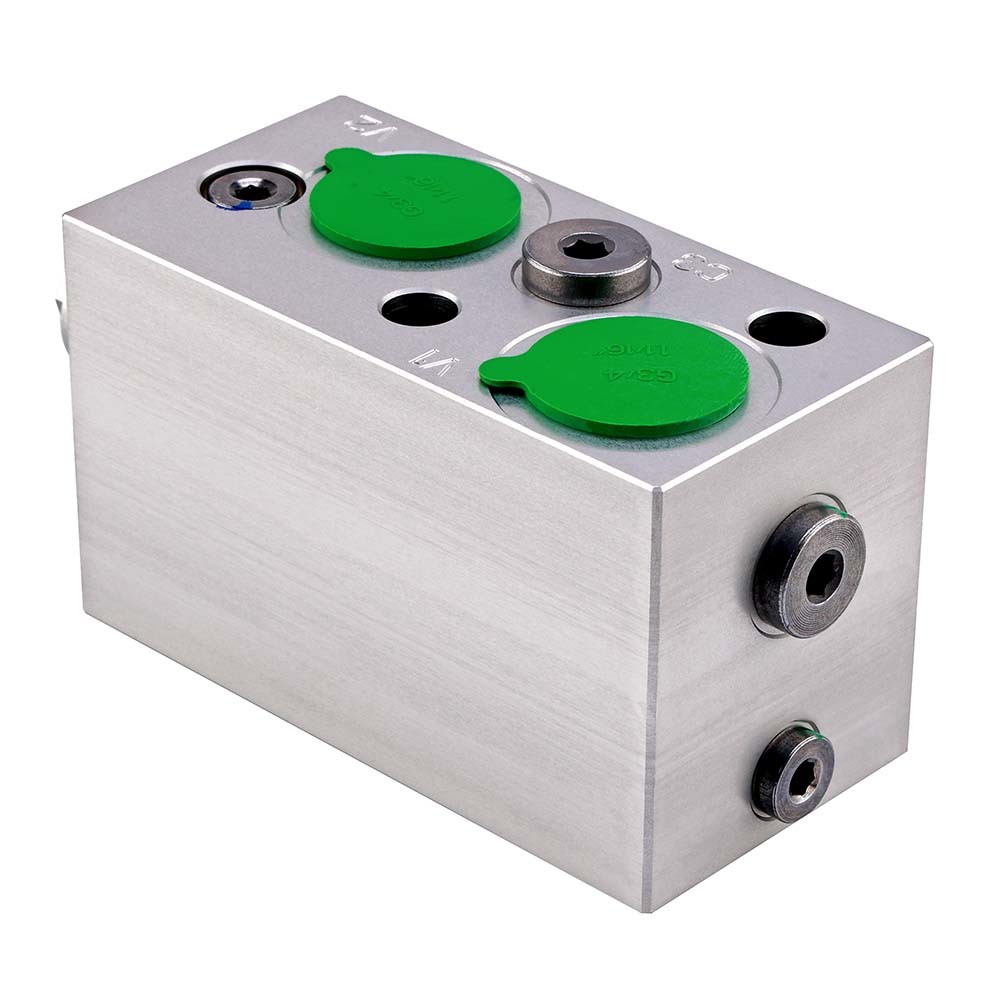

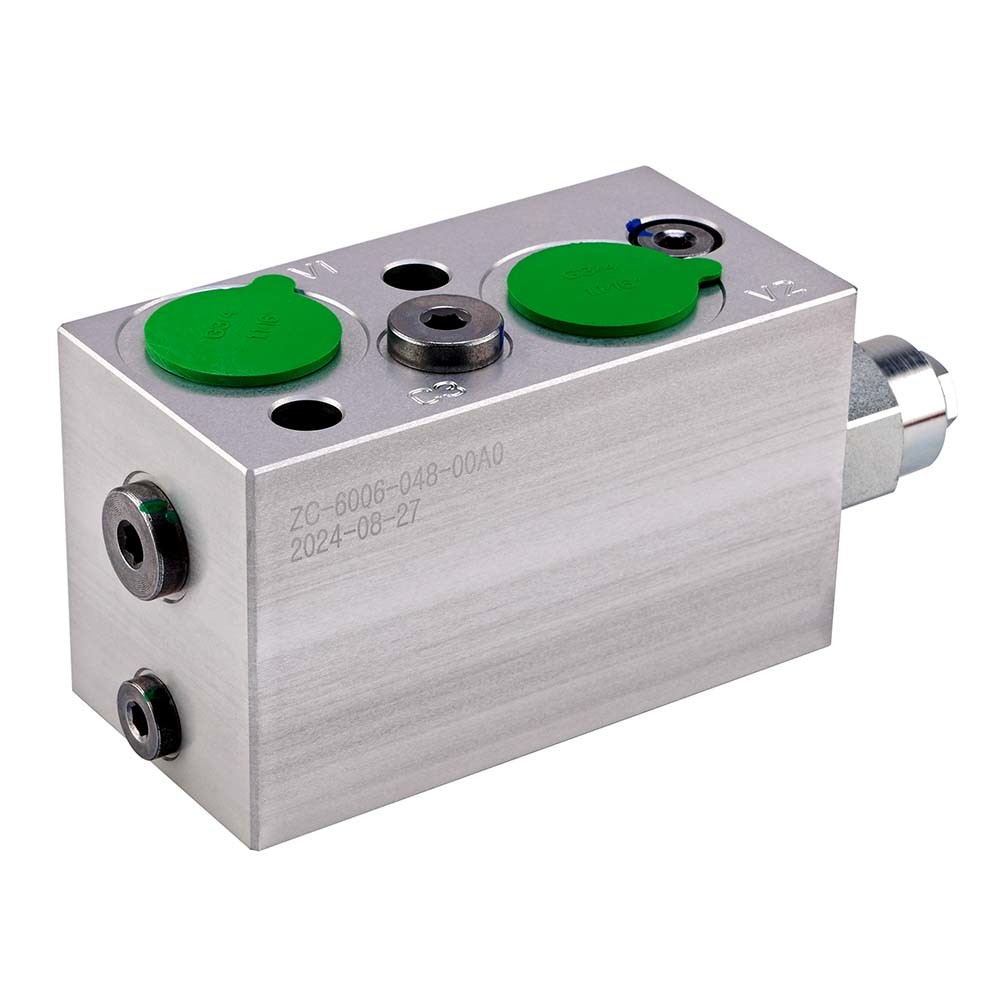

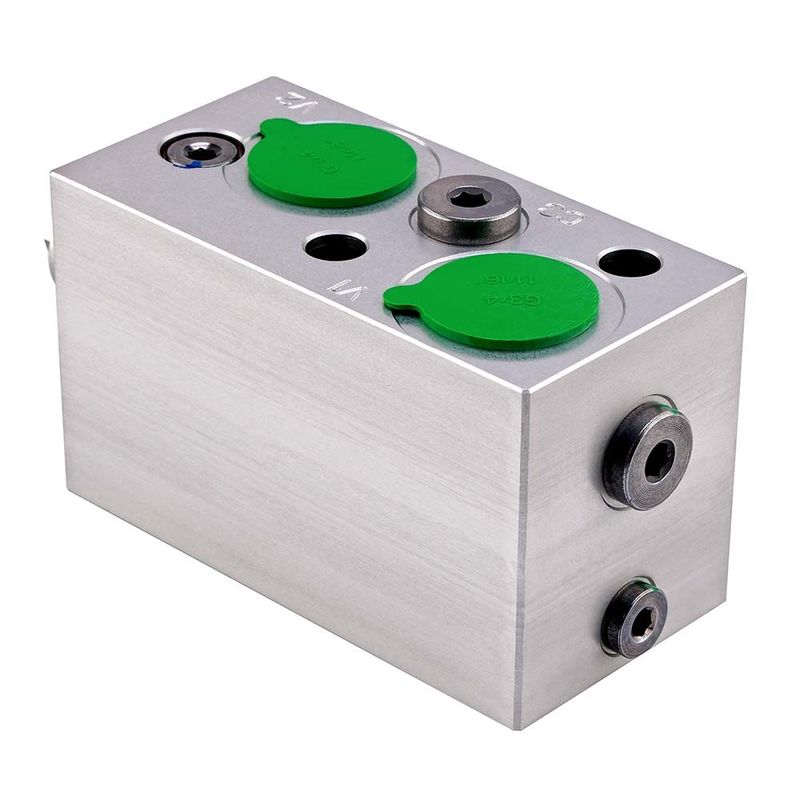

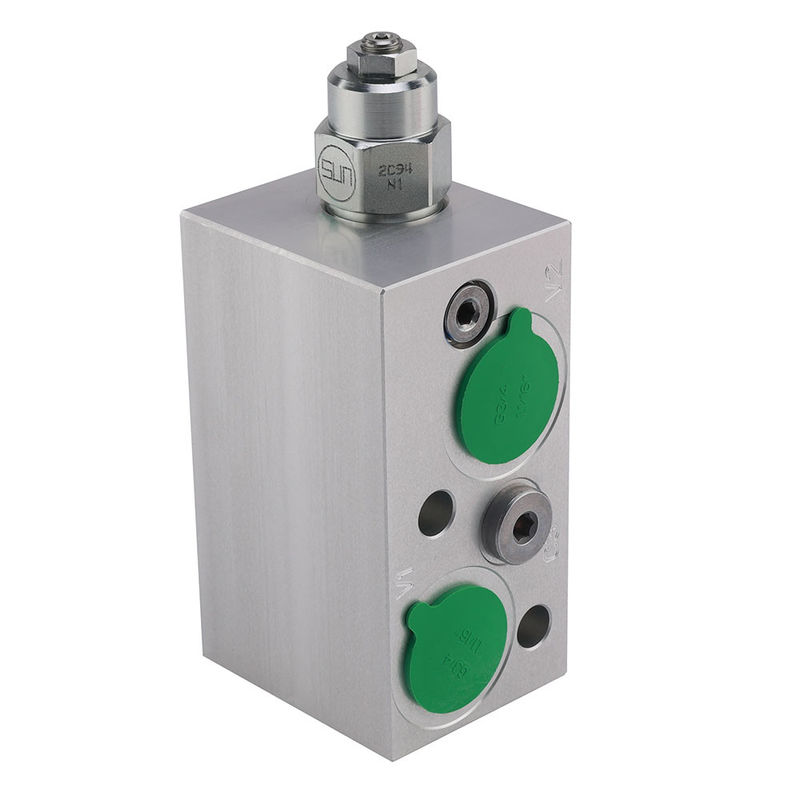

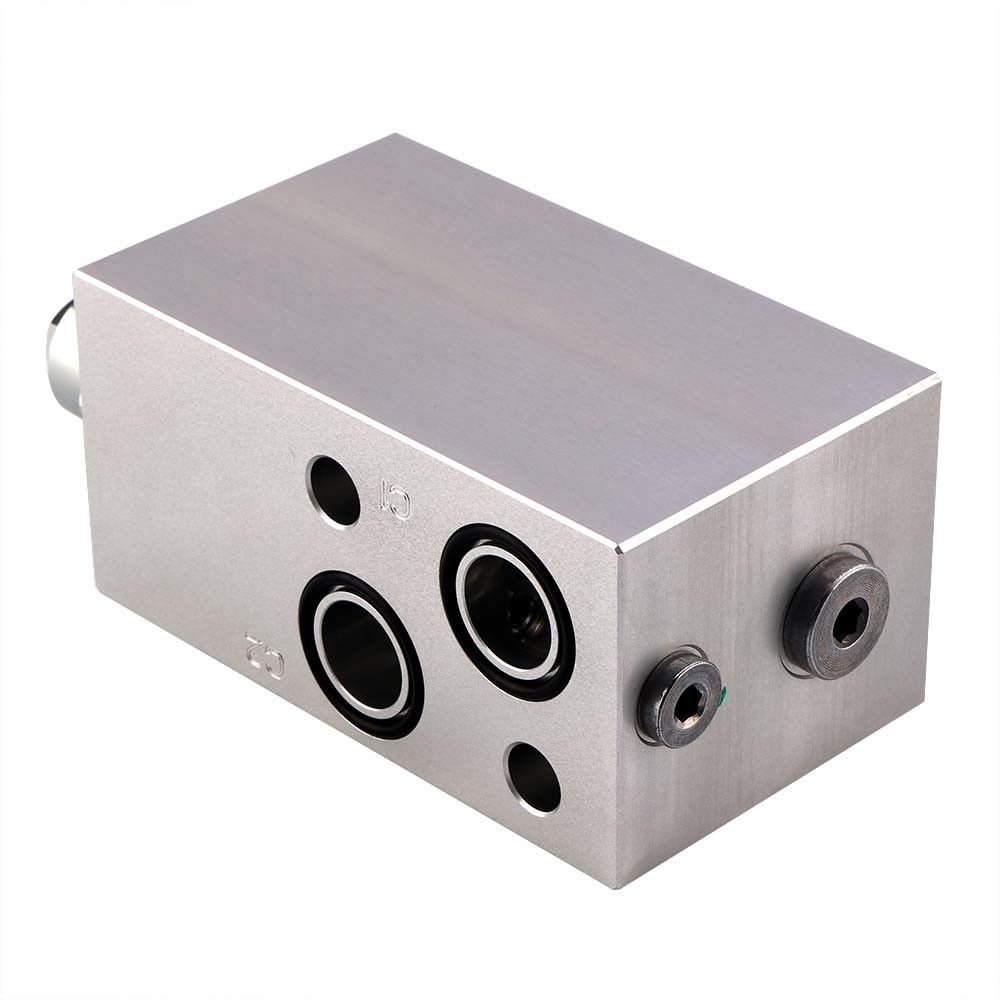

Integrated Hydraulic Manifold Valves Hydraulic Reversing Valve Aluminum CNC Machining

Hydraulic Manifold Valves Hydraulic Reversing Valve Aluminum CNC Machining Services

Hydraulic manifold block is made of solid metal processing block. The mounting surface of board type valve, the cavity of the cartridge valve and oil outlet of pipe joint and flange are on the surface of the hydraulic manifold block. It has the hole connecting valve mouth, which can realize complex function of oil duct connected between components.

As the number of holes on a hydraulic manifold blocks generally can reach dozens or hundreds, the design of the channel is not only a lot of work, but verifying the correct channel connections has become more difficult. The traditional check method relies on complex integrated block views and numerous zigzag sections, requiring designers to use spatial imagination to analyze internal hole relationships - a time-consuming process where human analysis alone often fails to identify interference between complex holes.

Virtual Design (VD) is a new method using virtual reality technology that provides designers with a complete, visual geometric model. This approach simulates the design process through physical modeling, allowing designers to directly observe design results, hole relationships, and assembly outcomes on virtual models - reducing labor while increasing calibration reliability.

The above-mentioned hydraulic manifold is a three-position four-way aluminum hydraulic directional valve. Its working principle is shown in the table below.

Position	Flow Path	Port Status	Load Action
Center (0)	P → T	C1 & C2 blocked	Load locked
Left (I)	P → C1	C2 → T	Load extend (forward)
Right (II)	P → C2	C1 → T	Load retract (reverse)
