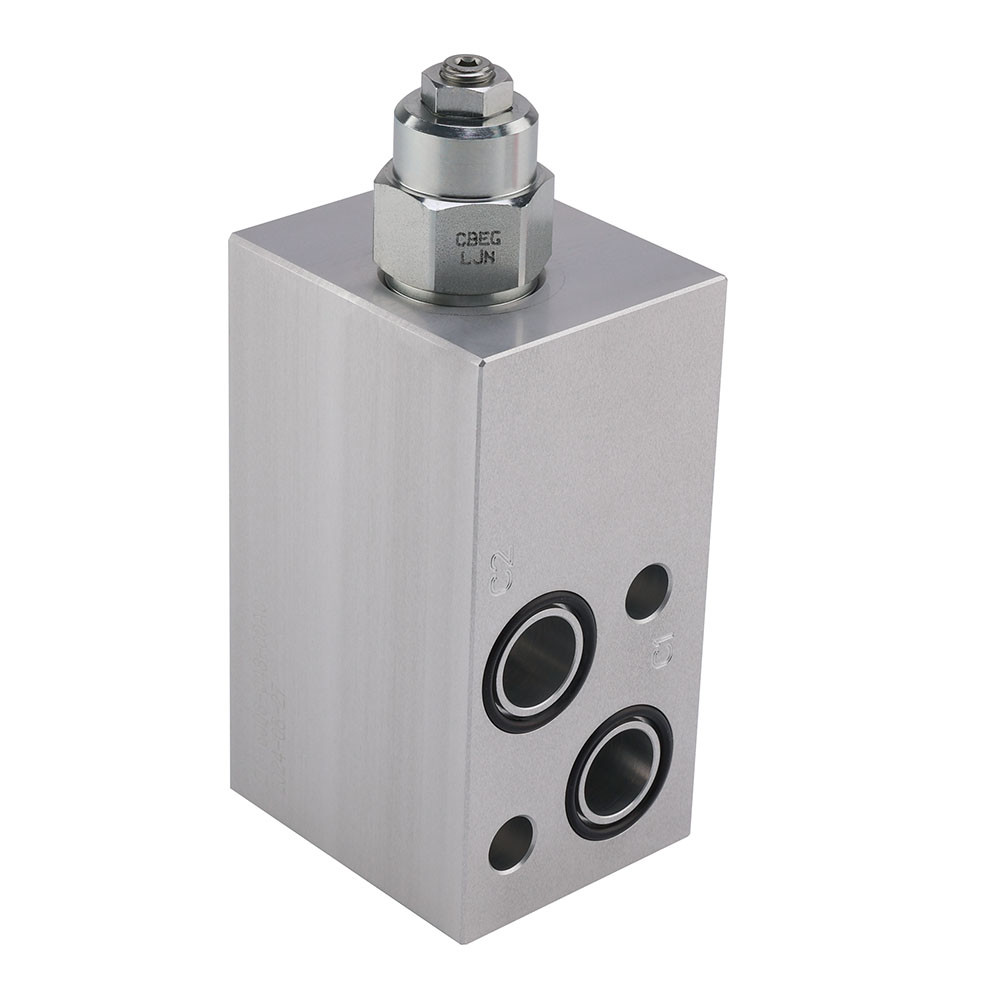

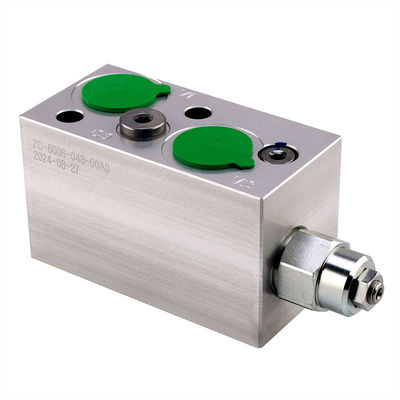

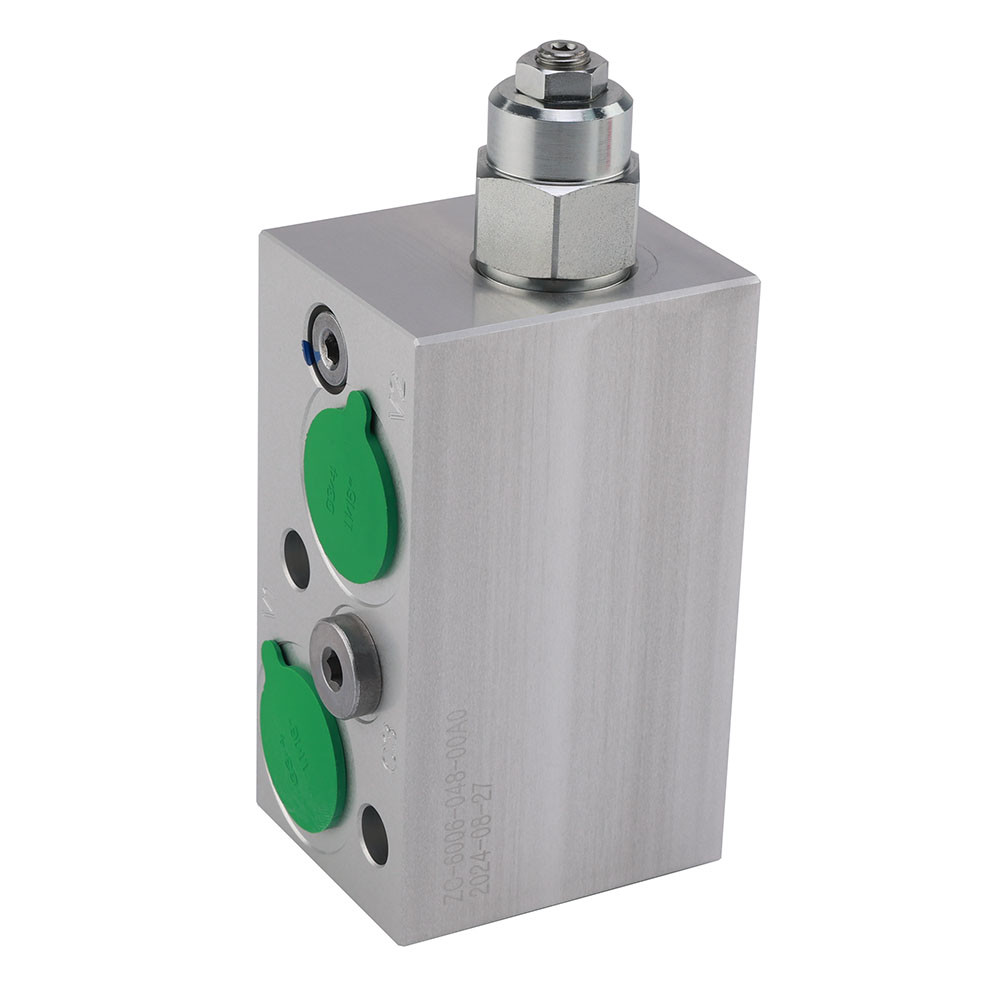

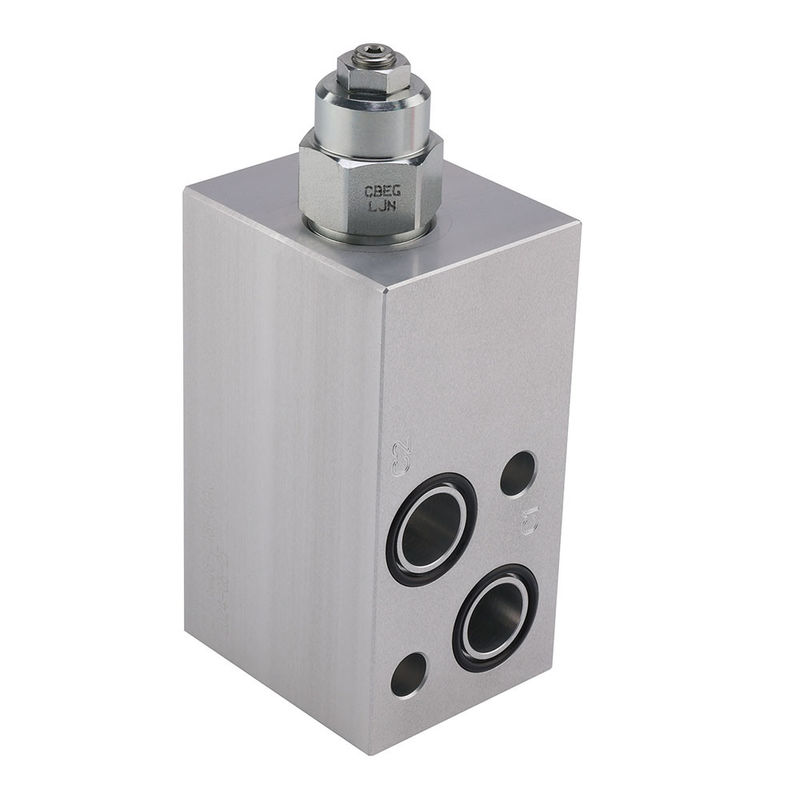

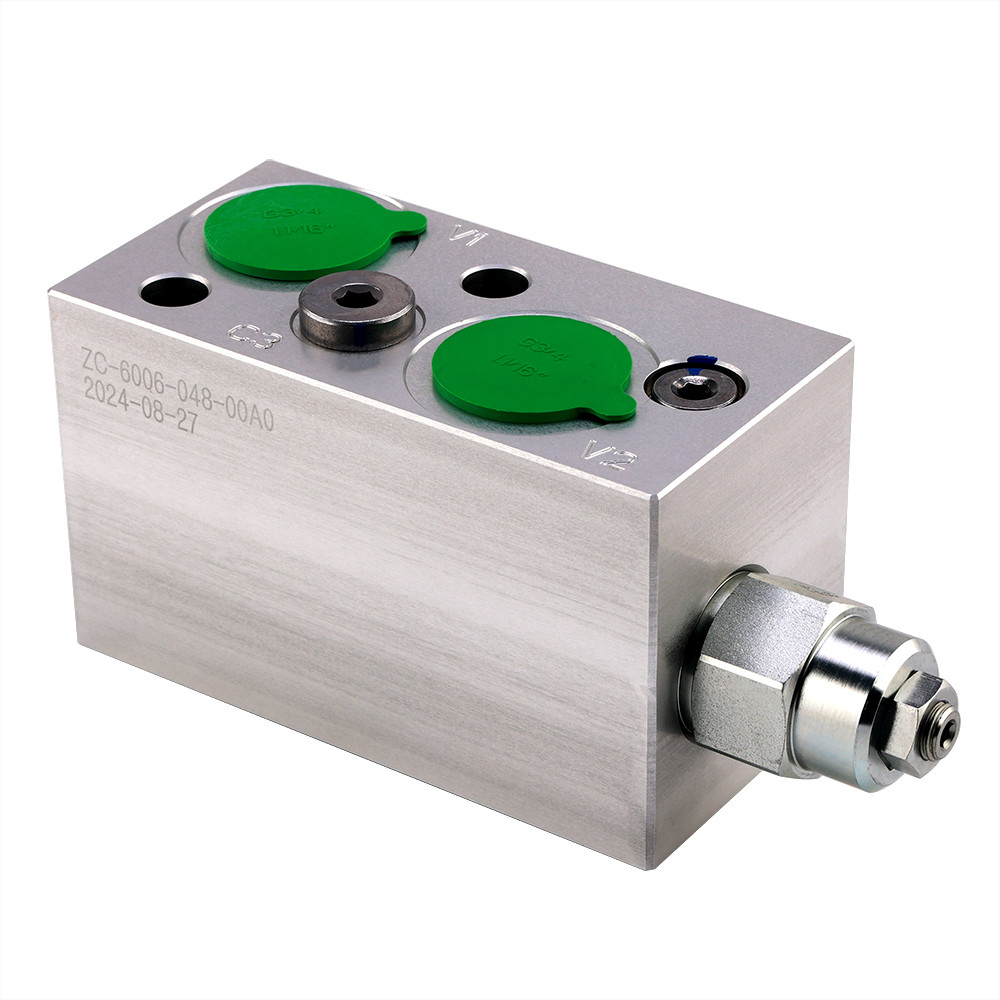

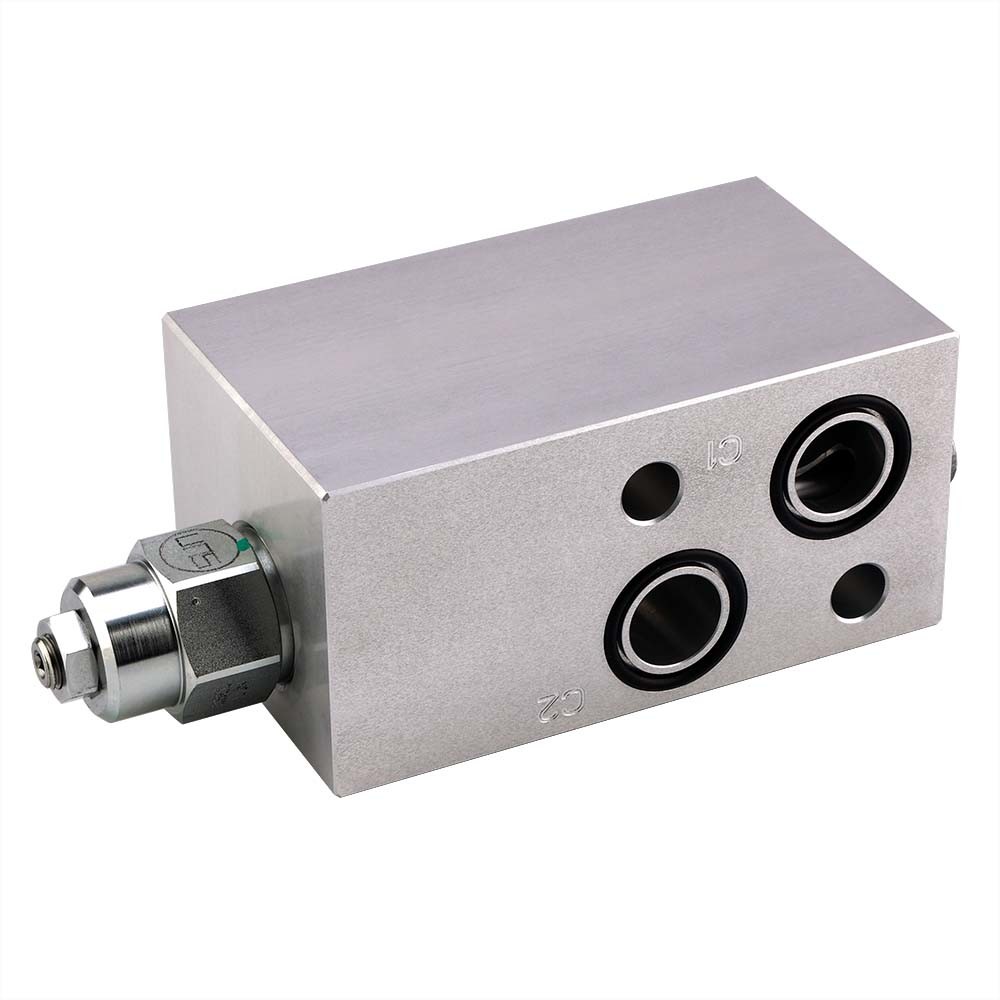

Excavator Hydraulic Manifold Powder Coating Anodized Sun Hydraulic Cartridge Valves

Hydraulic Manifold Sun Hydraulic Cartridge Valves Hydraulic Excavator

Abstract: Hydraulic manifold block design is a creative work. In addition to the calculations required for hole design and verification, many of the work contents are non-numerical calculations. Give full play to the wisdom and creativity of designers, and use computer-aided design technology to explore the design method of hydraulic manifold blocks. Use virtual design to realize the functional design of hydraulic manifold blocks. Functional design mainly includes digitization of hydraulic schematic diagram, design of valve plate, hole connection design of hydraulic manifold block and verification of inner hole of hydraulic manifold block.

Introduction

Hydraulic manifold block (HMB) is a valve block with many holes drilled in it [1]. Various hydraulic components such as hydraulic valves, pipe joints, pressure gauges, etc. are installed on its outside [2]. Its internal holes are connected to the component channels. Hydraulic integrated circuits are made to achieve system control requirements [3][4]. Hydraulic systems using manifold blocks have the following four characteristics. (1) Reduce the labor of valve and pipeline installation, and use this technology to upgrade and transform existing equipment. (2) Reduce the size and weight of the hydraulic system, and realize more functions in the narrow space near the actuator. (3) Reduce the installation of exposed pipelines and pipeline connections, and reduce the possibility of leakage. (4) Quickly disassemble and replace components without damaging external pipeline connections to improve system applicability.
